Torque for Stabilizer bar bolts

Discussion in 'Dodge Challenger General Discussions' started by Janning, Nov 22, 2020.

  1. 2017 Redline HC

    2017 Redline HC 2017 Redline HC

    Posts:
    863
    Likes Received:
    210
    Joined:
    Apr 18, 2019
    Location:
    Southern Ontario
  2. Janning

    Janning Full Access Member

    Posts:
    50
    Likes Received:
    0
    Joined:
    Feb 21, 2015
    HA the bible has "lots of info"....this is the biggest most comprehensive documentation I've ever seen! thanks.! I hate the way the never stick to one name. It looks like that screen shot above is the one. They are calling where the bushing is a cradle. So 110-111 on the links and the "cradle" is 136 ft/lbs.
    What they calling "Fastener" they make it clear not to reuse it....but I have no idea what it is.

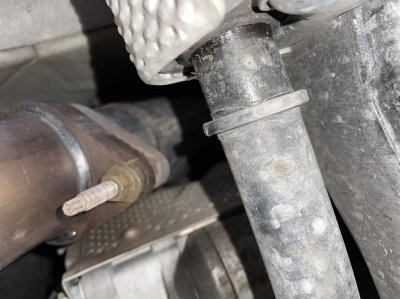

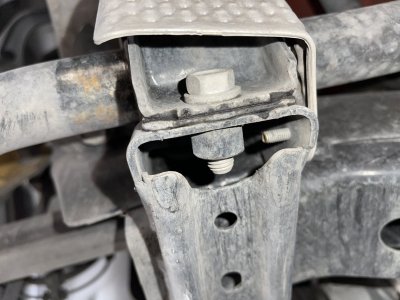

    Here's what happened, I went over like a block of cement...on drivers side...I didn't see it. I heard metal hit, wasn't that bad. It shifted over the entire stabilizer bar (sway bar strut? #1 in orig pic), one inch. Not sure how this happened I rolled over it came straight down. Nothign is bent I could prolly loosen and move back but while there I'm changing the bushings and end links. s_IMG_0085.jpg IMG_0082.jpg

  3. Janning

    Janning Full Access Member

    Posts:
    50
    Likes Received:
    0
    Joined:
    Feb 21, 2015
    Looking closer at this 136 ft pounds is pretty tight for that tiny bolt? and I don't see anything that could be a "fastener"

  4. 2017 Redline HC

    2017 Redline HC 2017 Redline HC

    Posts:
    863
    Likes Received:
    210
    Joined:
    Apr 18, 2019
    Location:
    Southern Ontario
    I still think that’s the stabilizer to crossmember support.

  5. Katshot

    Katshot Full Access Member

    Posts:
    923
    Likes Received:
    222
    Joined:
    Mar 28, 2020
    Location:
    Florida
    Very simple:
    Stabilizer bar to crossmember: these are the main bushing clamp bolts. Torque them to 48 Ft.Lbs.
    Stabilizer bar heat shield to crossmember: these are the tiny little bolts for the heat shields. Torque them to 44 In.Lbs.
    Stabilizer link to stabilizer bar nut: this is the end of the link that connects to the stabilizer bar. Torque this to 100 Ft.Lbs.
    Stabilizer link to strut nut: this is the nut on the other end of the link. Torque this to 111 Ft.Lbs.

  6. Janning

    Janning Full Access Member

    Posts:
    50
    Likes Received:
    0
    Joined:
    Feb 21, 2015
    Thank You

  7. Katshot

    Katshot Full Access Member

    Posts:
    923
    Likes Received:
    222
    Joined:
    Mar 28, 2020
    Location:
    Florida
    ;)

  8. 70-426_10-SRT

    70-426_10-SRT B&E body lover

    Age:
    61
    Posts:
    1,443
    Likes Received:
    508
    Joined:
    Jun 25, 2018
    Location:
    PDX
    Make sure you read Inch lbs, not Foot lbs on these :)
    Stabilizer bar heat shield to crossmember: these are the tiny little bolts for the heat shields. Torque them to 44 In.Lbs.

  9. Janning

    Janning Full Access Member

    Posts:
    50
    Likes Received:
    0
    Joined:
    Feb 21, 2015
    NO DOUBT....I thought 44 ft was a bit high for the heat shield.....glad you said that

  10. 70-426_10-SRT

    70-426_10-SRT B&E body lover

    Age:
    61
    Posts:
    1,443
    Likes Received:
    508
    Joined:
    Jun 25, 2018
    Location:
    PDX
    I hate it when they MIX those in the same doc.

    44 In lbs = 3.666 Ft lbs :)
